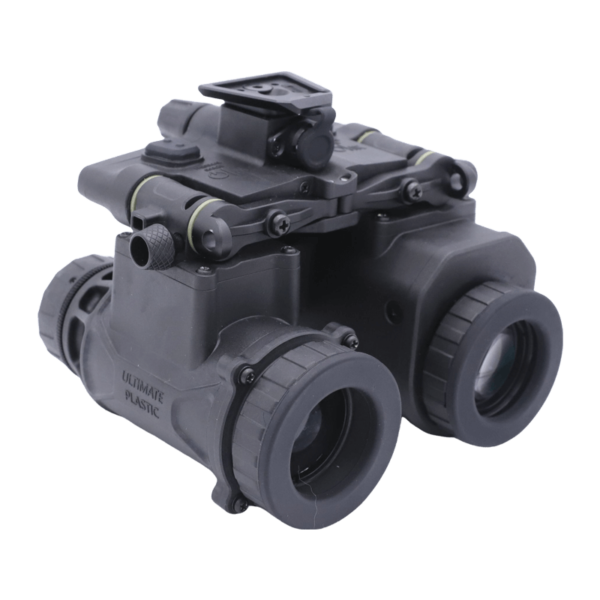

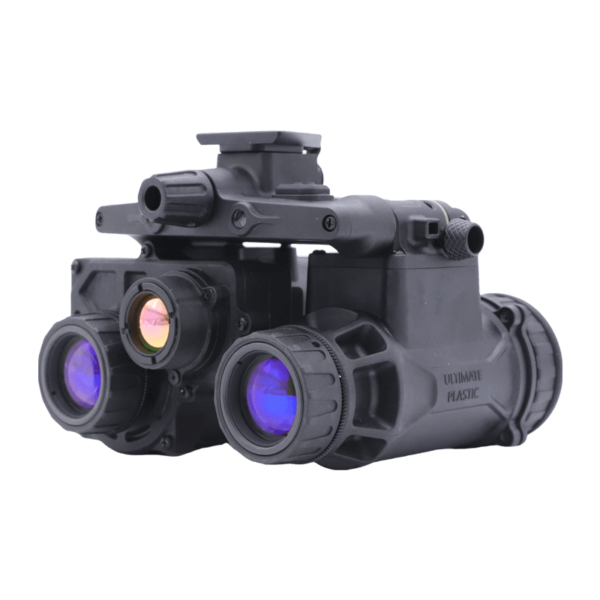

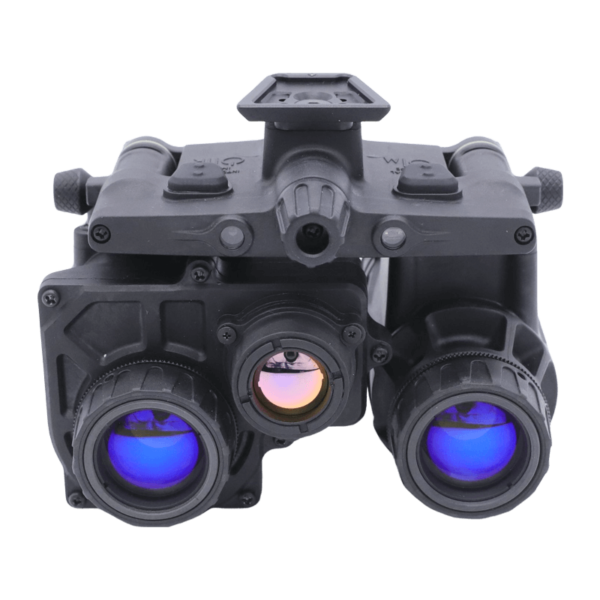

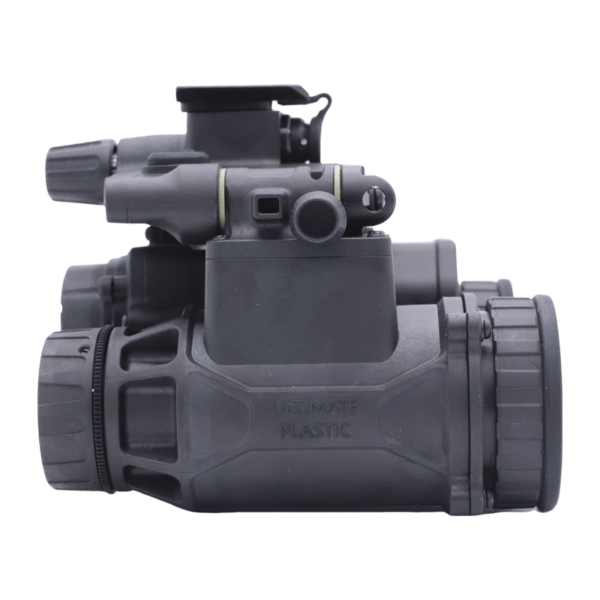

RENV-B Thermal Fusion Goggle
IN STOCK
The RENV-B Thermal Fusion Goggle is the most advanced fusion system available to the public, combining thermal imaging and analog night vision into a single binocular system. With built-in GPS, compass HUD, inclination indicator, and Bluetooth remote control, the RENV-B delivers both advanced situational awareness and long-duration performance in a rugged, field-ready package.
Fusion Technology

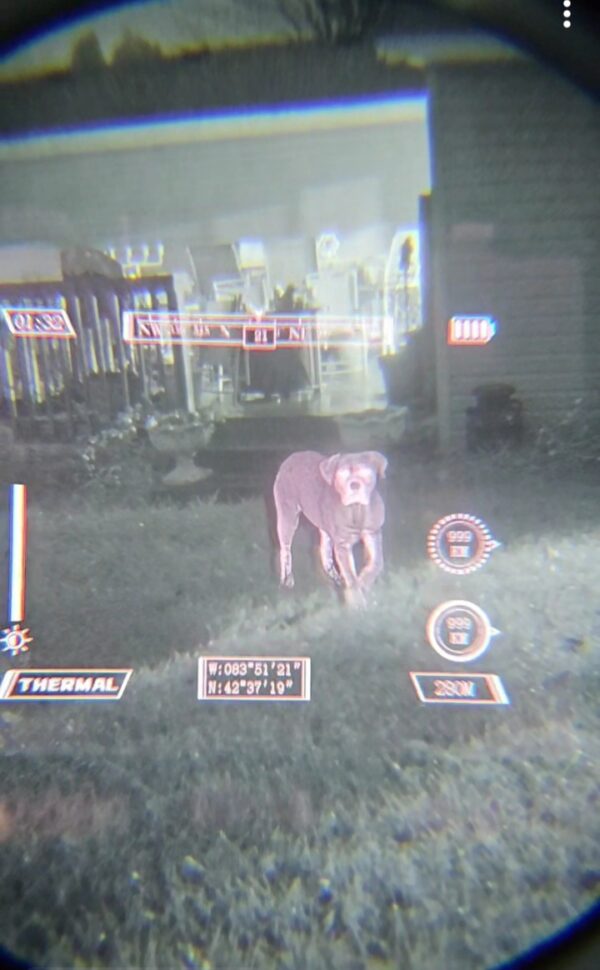

- Dual-Spectrum Imaging: Real-time fusion overlay combines thermal signatures with analog night vision
- Right-Eye Thermal Module: Thermal signatures are processed internally and overlaid at the ocular, preventing washout from ambient light (overcomes COTI limitations)
- Thermal Lens: 19mm objective capable of detecting human targets up to 1.5 km and vehicles up to 3 km
- Thermal Modes: Four selectable modes (Outline – White Hot, Highlight – White Hot, Outline – Orange Hot, Highlight – Orange Hot)
- Adjustable Overlay: Onboard menu system allows alignment of thermal and NV images
- Switchable Use: Operate in full fusion, thermal-only, or traditional night vision-only modes
Display & Interface
- Display: 0.6" full-color OLED with 800×600 resolution
- Compass HUD: Displays heading, position, and user-set navigation markers
- Inclination Indicator: Provides real-time angle feedback
- Built-in GPS: Integrated navigation capability
- Bluetooth Remote Control: Wireless operation without touching the device, increasing ease of use in tactical scenarios
Performance & Power
- Intensifiers: Selection of tubes including NNVT, Elbit, and L3
- Thermal Core: 640×512, 12 μm sensor resolution
- Battery Life: Dual 18650 batteries provide up to 60 hrs (night vision only) / ~8 hrs (fusion mode)
- External Power Supply: Compatible via cable input
- Battery Pack: 320 g, with cables included
Controls & Adjustments
- Manual gain control for intensifiers
- Independent pod shut-off when articulated
- Built-in IR illuminator
- +2 to -4 adjustable diopter eyepieces
- Built-in compass and ability to accept external video signals
- Hard IPD adjustment knobs for precise interpupillary spacing
Specifications
| Feature | Details |
|---|---|
| Display | 0.6" OLED, 800×600 resolution, full-color |
| Thermal Objective | 19mm lens |
| Detection Range | Human: 1.5 km | Vehicle: 3 km |
| Thermal Core | 640×512, 12 μm |
| Thermal Modes | Outline (White Hot), Highlight (White Hot), Outline (Orange Hot), Highlight (Orange Hot) |
| Intensifiers | NNVT, Elbit, or L3 |
| Power Supply | Dual 18650 batteries or external power input |
| Battery Life | ~60 hrs (NV only), ~8 hrs (fusion mode) |
| Weight | 600 g with intensifiers (device) | 320 g (battery pack + cables) |
| Mounting | Dovetail interface |
Order Now
The RENV-B Thermal Fusion Goggle is in stock. A cutting-edge solution for professionals and enthusiasts requiring both night vision and thermal detection in one integrated, mission-ready system.
