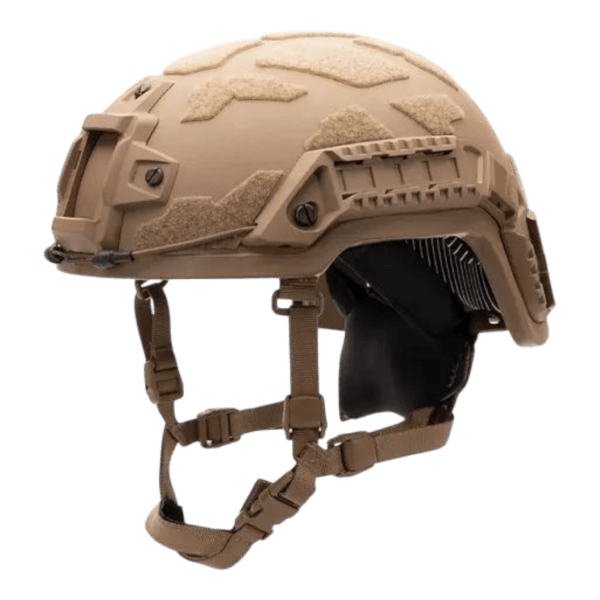

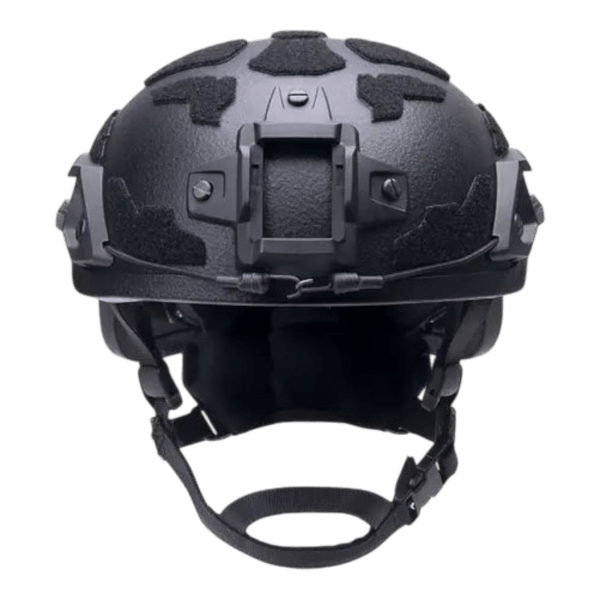

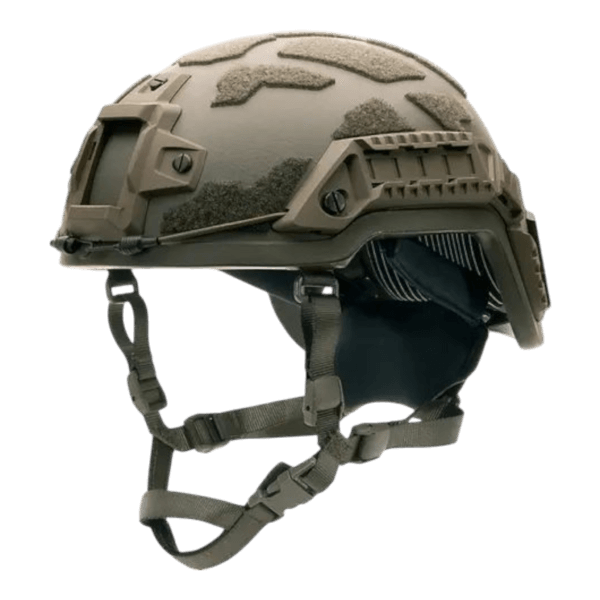

PGD ARCH GEN3 Ballistic Helmet
IN STOCK & READY TO SHIP

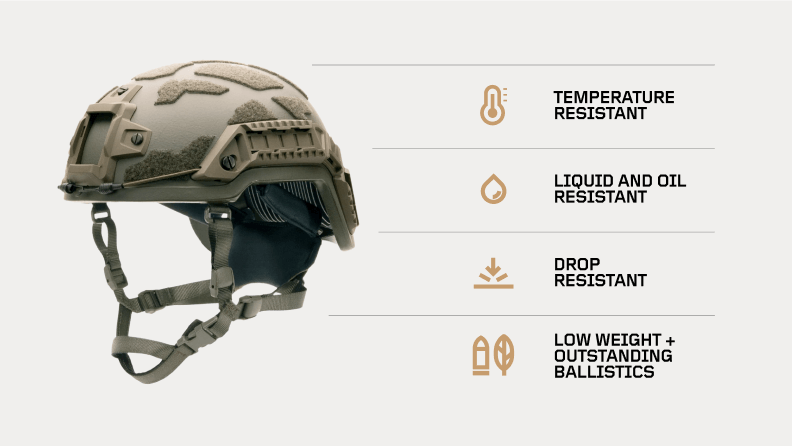

The PGD ARCH GEN3 high-cut ballistic helmet is built with high-performance Kevlar® aramid fibers (DuPont, USA) and engineered for professional military and law-enforcement use worldwide. A proprietary pre-preg lamination and press process delivers a multi-hit, durable shell at lower weight, with consistent performance in ambient, wet, hot, cold, and humid environments.
Ballistic Performance
- Shell materials: Kevlar® aramid fibers (DuPont, USA) processed into aramid layers by Saati S.p.A. (Italy), then pressed into final shell
- Proprietary pre-preg lamination for multi-hit durability at reduced mass
- Weight (complete system): L: 2.97 lb (1.35 kg) | XL: 3.06 lb (1.39 kg)
- V50 (STANAG 2920): 660 m/s

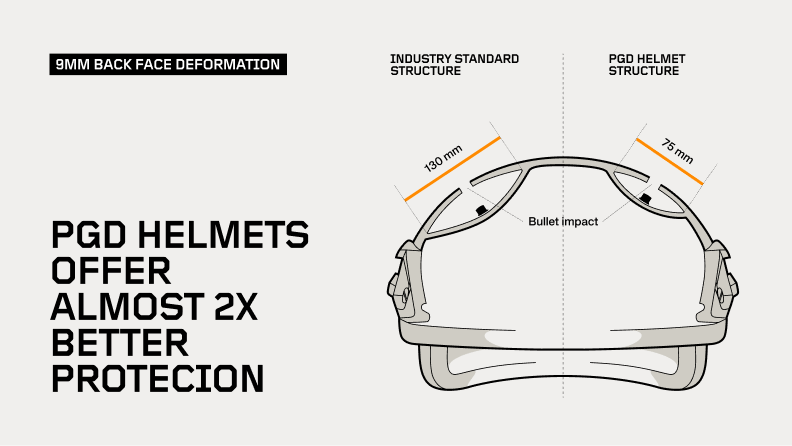

- Back Face Deformation (BFD): ~50% reduction vs 9mm baseline (HPW-TP-0401.01B IIIA)
| Standard / Threat | Round | Velocity |
|---|---|---|
| NIJ 0106.01 (with IIIA 0101.06 threats) | .44 Magnum & .357 SIG | Per spec |
| NIJ 0106.01 (with IIIA 0108.01 threats) | .44 Magnum & 9mm FMJ | Per spec |
| NIJ 0106.01 (special threat) | 9×18mm steel core MAK 6.0 g | 335 ±10 m/s |
| NIJ 0106.01 (special threat) | 7.62×25mm FMJ 5.5 g (lead core) | 520 ±10 m/s |
Designed for American users with premium U.S. materials and tested in leading U.S. ballistic laboratories for protection and reliability.
Fit, Comfort & Impact Mitigation

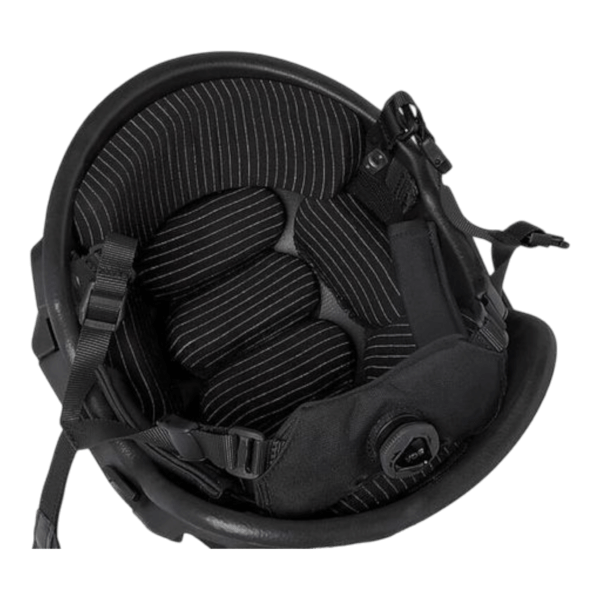

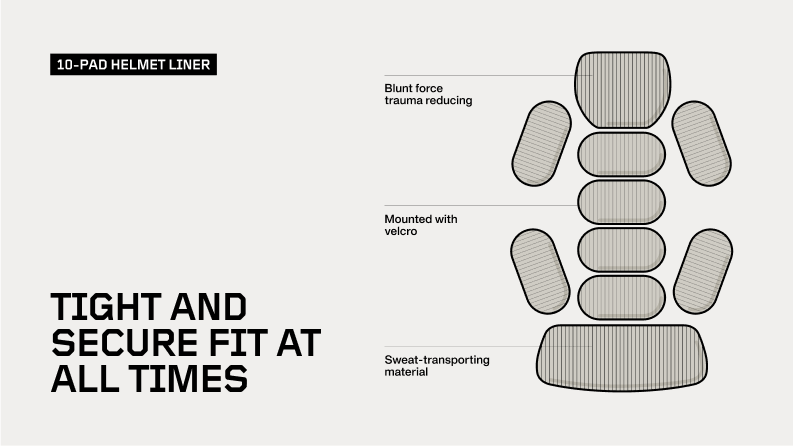

- PGD 10-pad memory foam liner: conforms in 2–3 seconds; reduces blunt-impact forces; pads are Velcro® mounted and easily replaceable

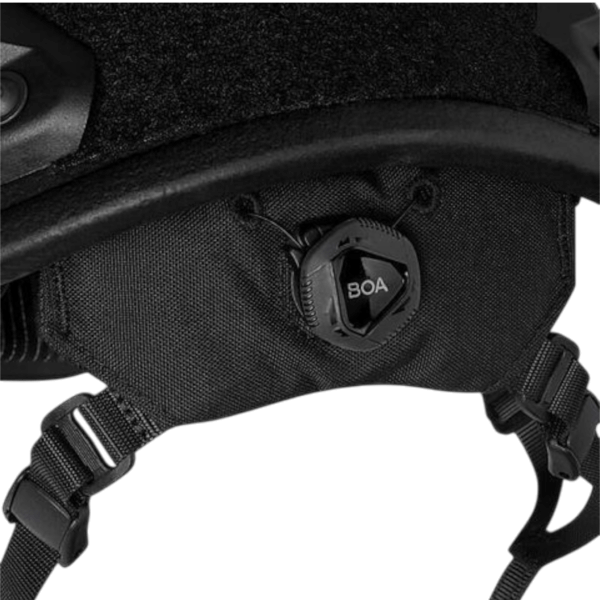

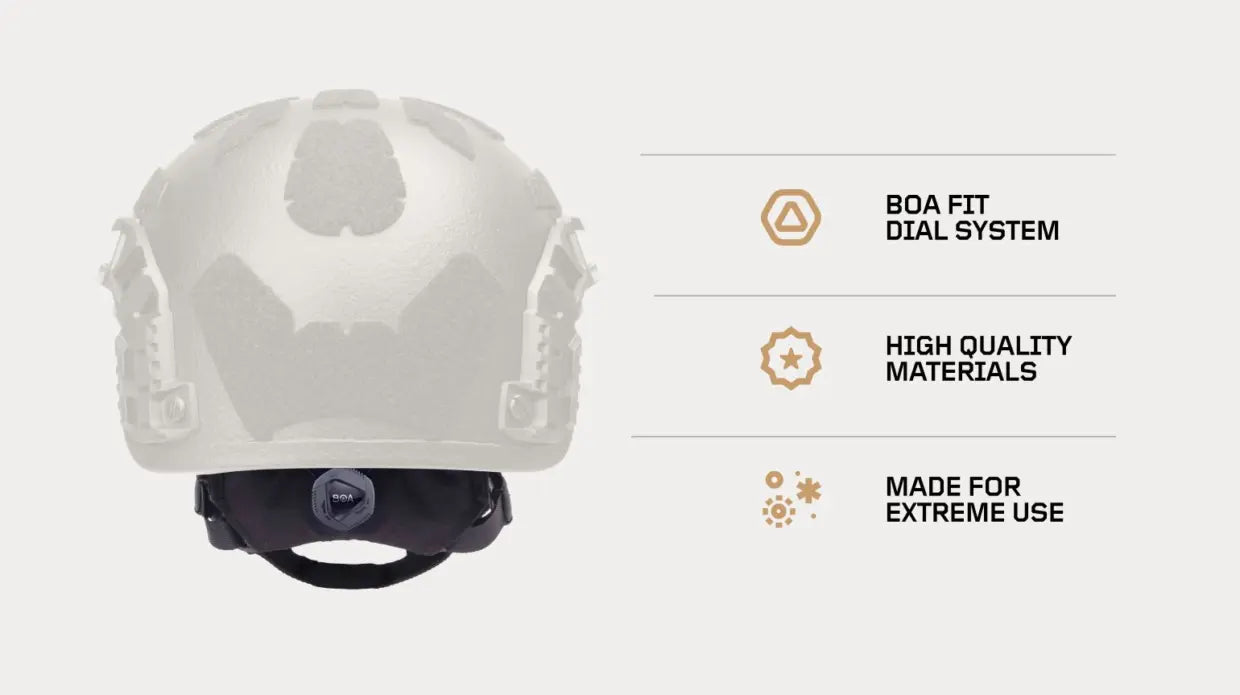

- PGD retention & dial: American-made Duraflex® buckles with a precise rear PGD Dial for secure, tailored fit
- Shell performance remains stable wet or dry and in extreme heat/cold/humidity; ballistic properties do not fade over time
Rail & Shroud System
- Front shroud & side rails: polymer + glass-fiber composite for higher tensile strength and lower weight than common die-cast metals (Al, Mg, Zn)

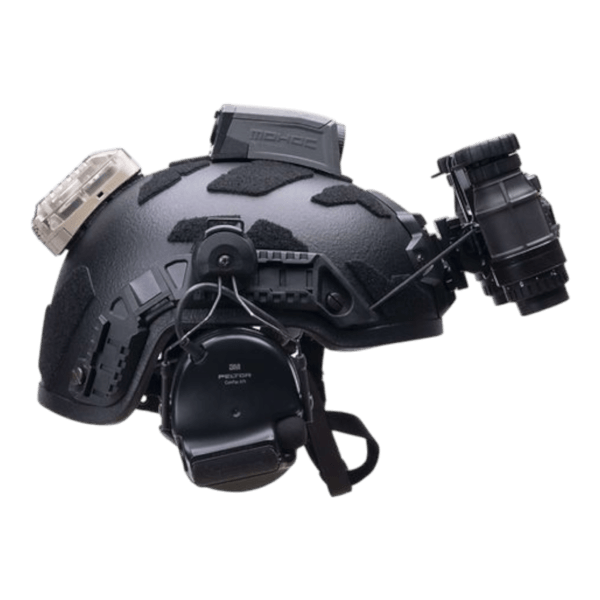

- NVG shroud compatibility: Wilcox, Norotos, Cadex and similar mounts
- Headset adapter compatibility: 3M Peltor, Sordin, Ops-Core AMP arms, Earmor, and comparable systems; accessory attachment via rails or included Velcro®
Choose your preferred NVG shroud at purchase.

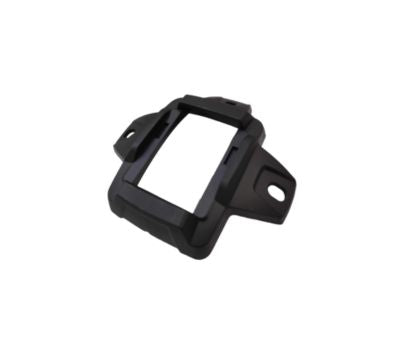

| PGD NVG Shroud | |
|---|---|
| Construction | Fiberglass-reinforced nylon; high-impact resistant |
| Compatibility | Wilcox & Cadex mounts |
| Notes | Lightweight, durable; built for professional NV use |

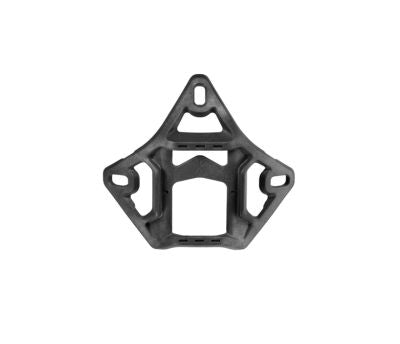

| Unity SUMMIT™ Shroud | |
|---|---|
| Construction | Over-molded unibody with polymer + stainless insert |
| Compatibility | Night vision, lights, cameras, accessories |
| Notes | Superior strength-to-weight; reliable, proven fit |
Why Choose PGD?
- American materials: Kevlar® (DuPont), Dyneema® (Avient), Spectra® & Gold Shield® (Honeywell)
- Gold-standard testing: validated in internationally recognized labs (e.g., Element Defense, USA)
- Quality assurance: every helmet built to stringent standards for those who serve
What’s Included
- High-cut ballistic helmet shell (ARCH GEN3)
- PGD retention system with Duraflex® buckles & PGD Dial
- PGD 10-pad memory foam liner set
- Side accessory rails
- Front NVG shroud (selected option)
- Velcro® pad kit
Specifications
| Attribute | Detail |
|---|---|
| Model | PGD ARCH GEN3 (High-Cut) |
| Shell Composition | Kevlar® aramid fibers (DuPont, USA) / Saati aramid layers; pre-preg laminated, pressed shell |
| Weight (Complete) | L: 2.97 lb | XL: 3.06 lb |
| V50 (STANAG 2920) | 660 m/s |
| BFD Reduction | ~50% vs 9mm baseline (HPW-TP-0401.01B IIIA) |
| Environmental Stability | Ambient / wet / heat / cold / humidity – no performance change |
| Rail & Shroud | Polymer + glass-fiber composite; NVG mount compatible (Wilcox, Norotos, Cadex) |
| Headset Interface | 3M Peltor, Sordin, Ops-Core AMP arms, Earmor, similar |
| Testing & Validation | U.S. ballistic laboratories (e.g., Element Defense) to NIJ/ STANAG standards |
Commitment to the User
PGD prioritizes your safety with American-sourced materials and rigorous testing. We stand behind the ARCH GEN3 helmet’s protection and performance so you can depend on it when it matters most.
