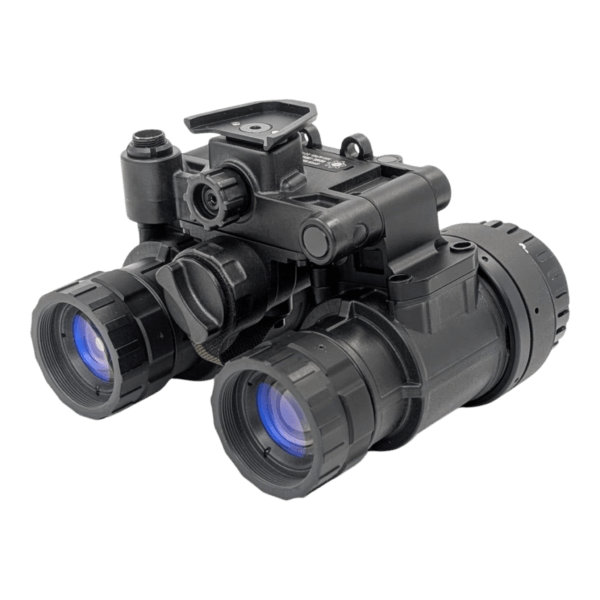

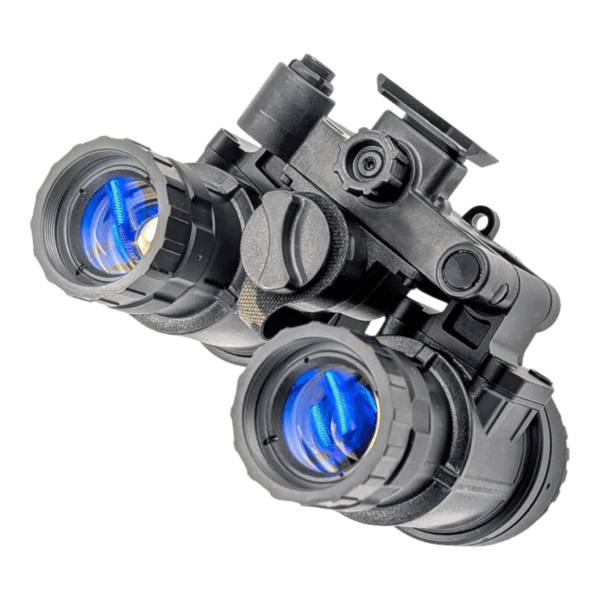

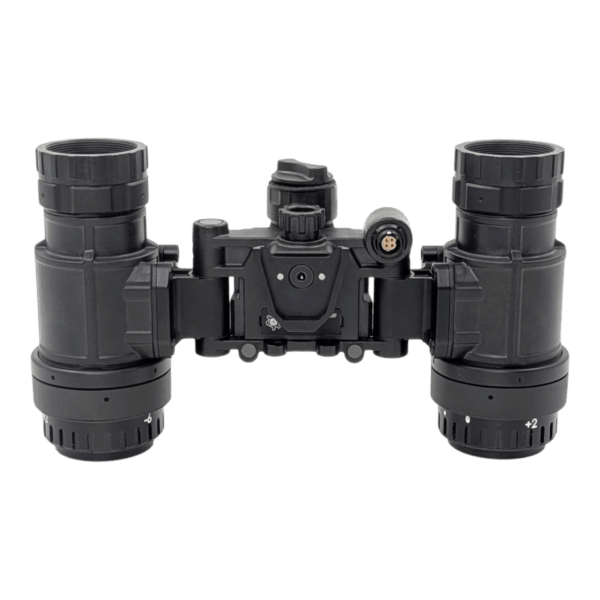

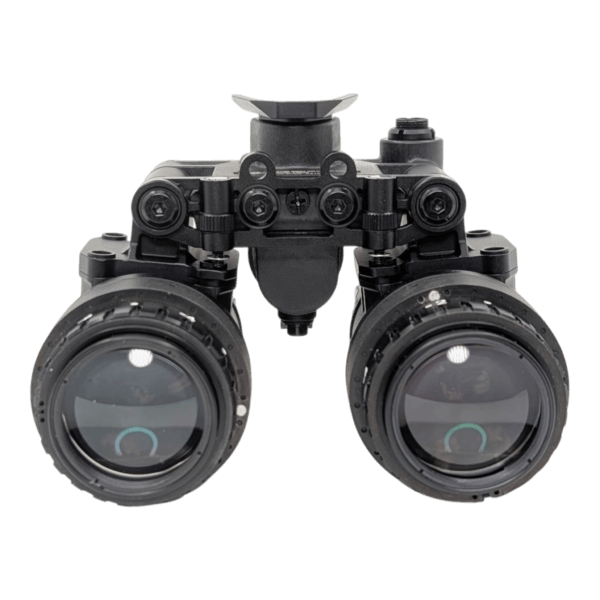

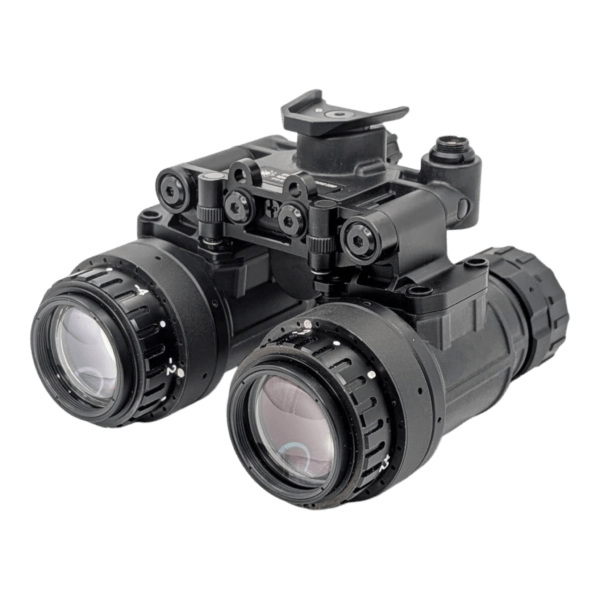

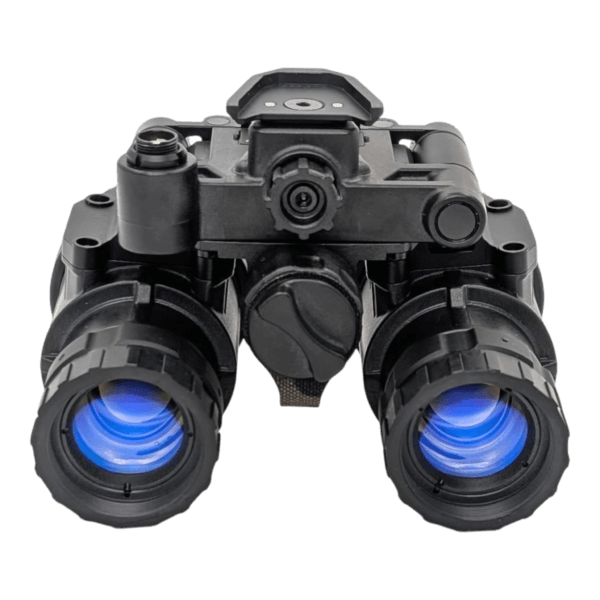

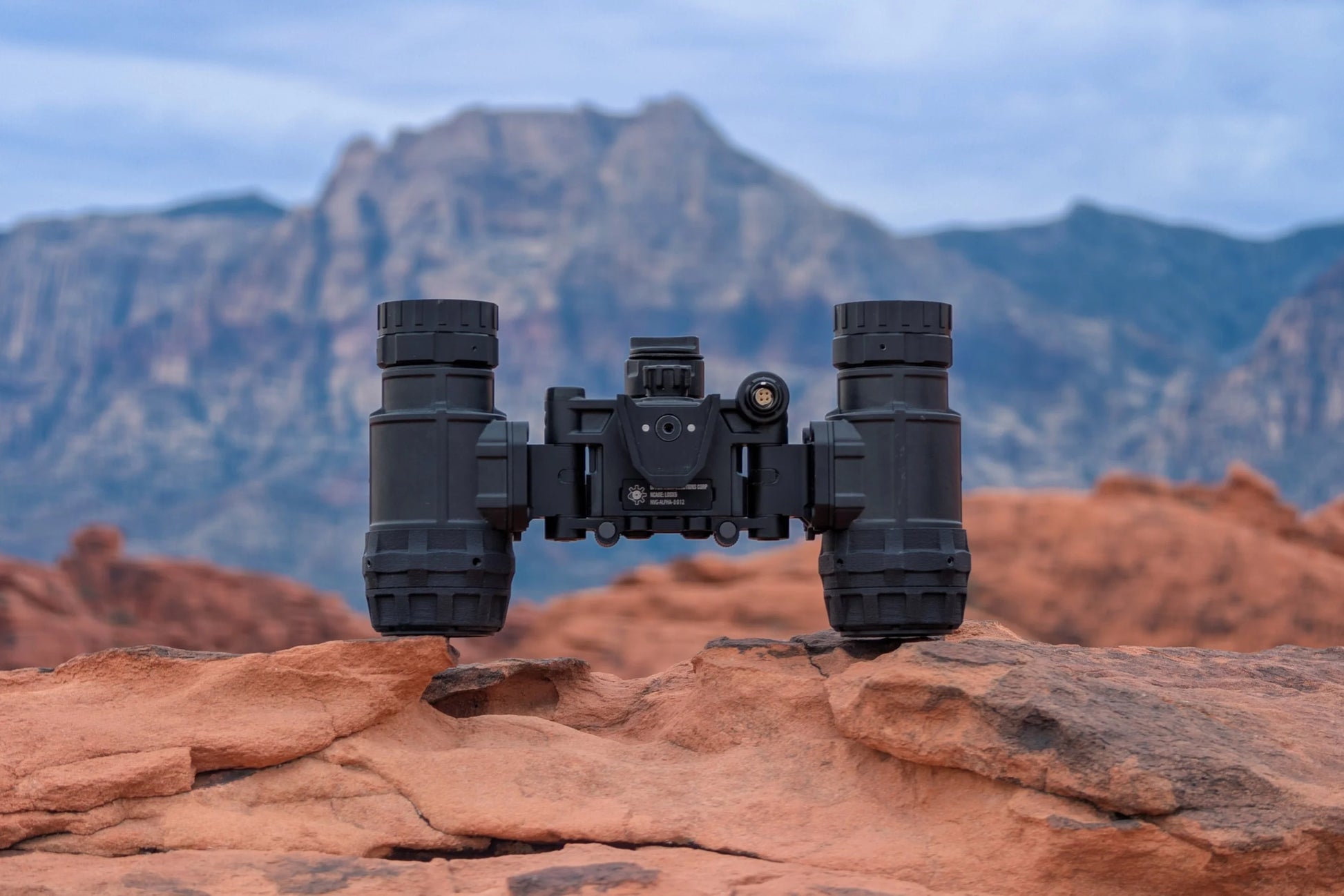

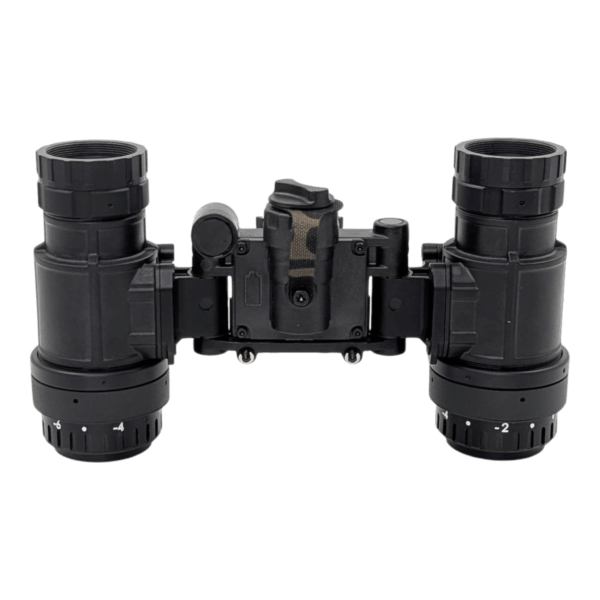

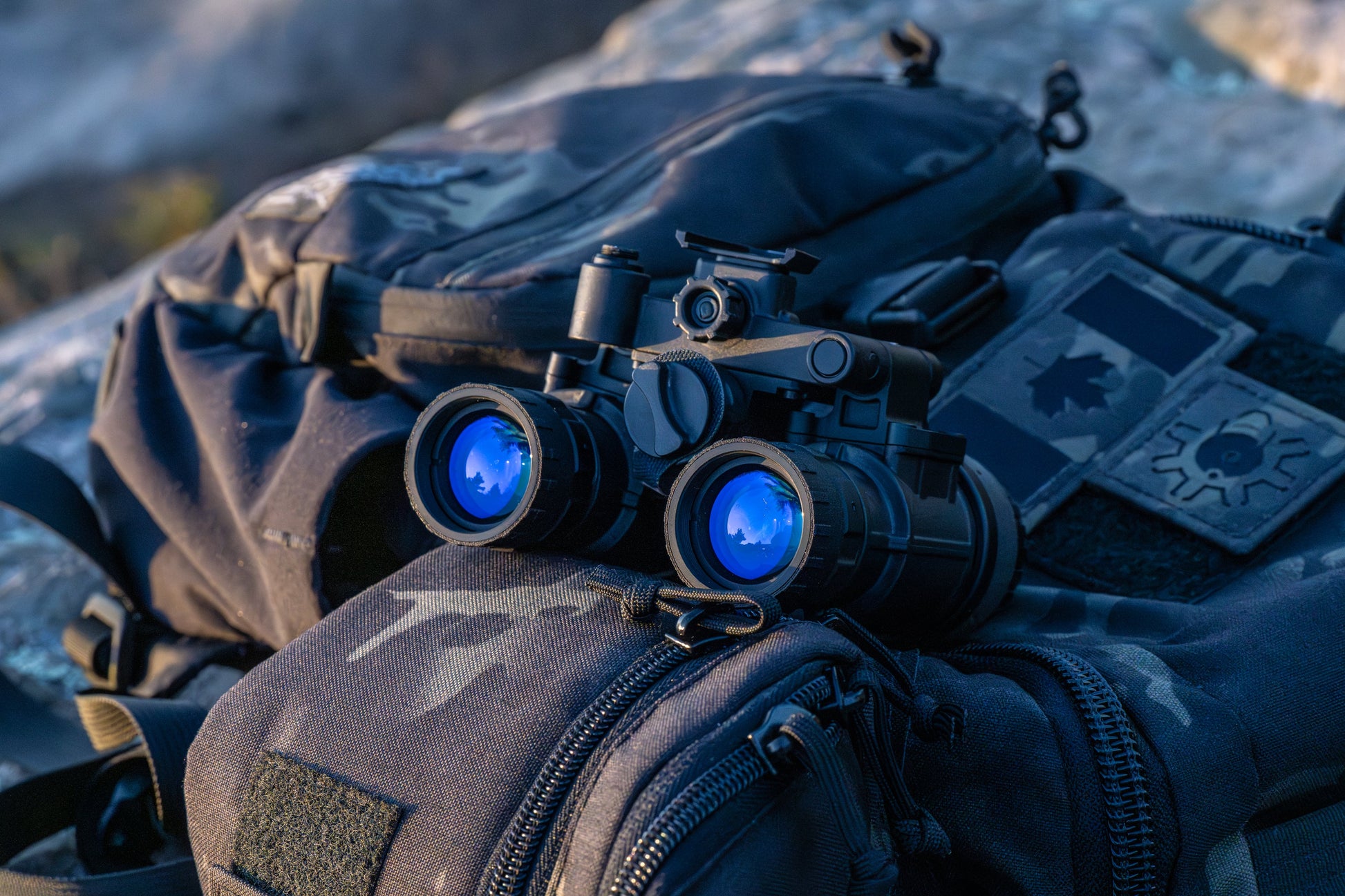

NVG-ALPHA Night Vision Binocular
IN STOCK
The NVG-ALPHA is a full-featured, ruggedized night vision binocular designed for professional use. Constructed with a hybrid of polymer and aluminum, it balances lightweight handling with maximum durability in critical areas. Built with user-focused ergonomics and advanced electronic controls, the NVG-ALPHA delivers dependable performance in demanding environments.
Key Features
- Robust aluminum hinge design with reinforced strength
- Variable manual gain control (compatible with some NNVT tubes)
- Gain memory saves user settings even after power cycles
- Independent pod shutoff when articulated outward (toggleable ON/OFF)
- Automatic vertical flip shutoff (toggleable ON/OFF)
- 2-minute idle shutoff prevents tube damage from accidental activation (toggleable ON/OFF)
- Interpupillary stop design with impact-forcing aluminum plate for rugged use
- Powered by single CR123A battery (~20 hours)
- Optional external remote battery pack via 4-pin Fischer port
- Mount compatibility: Wilcox style and Cadex Mounts

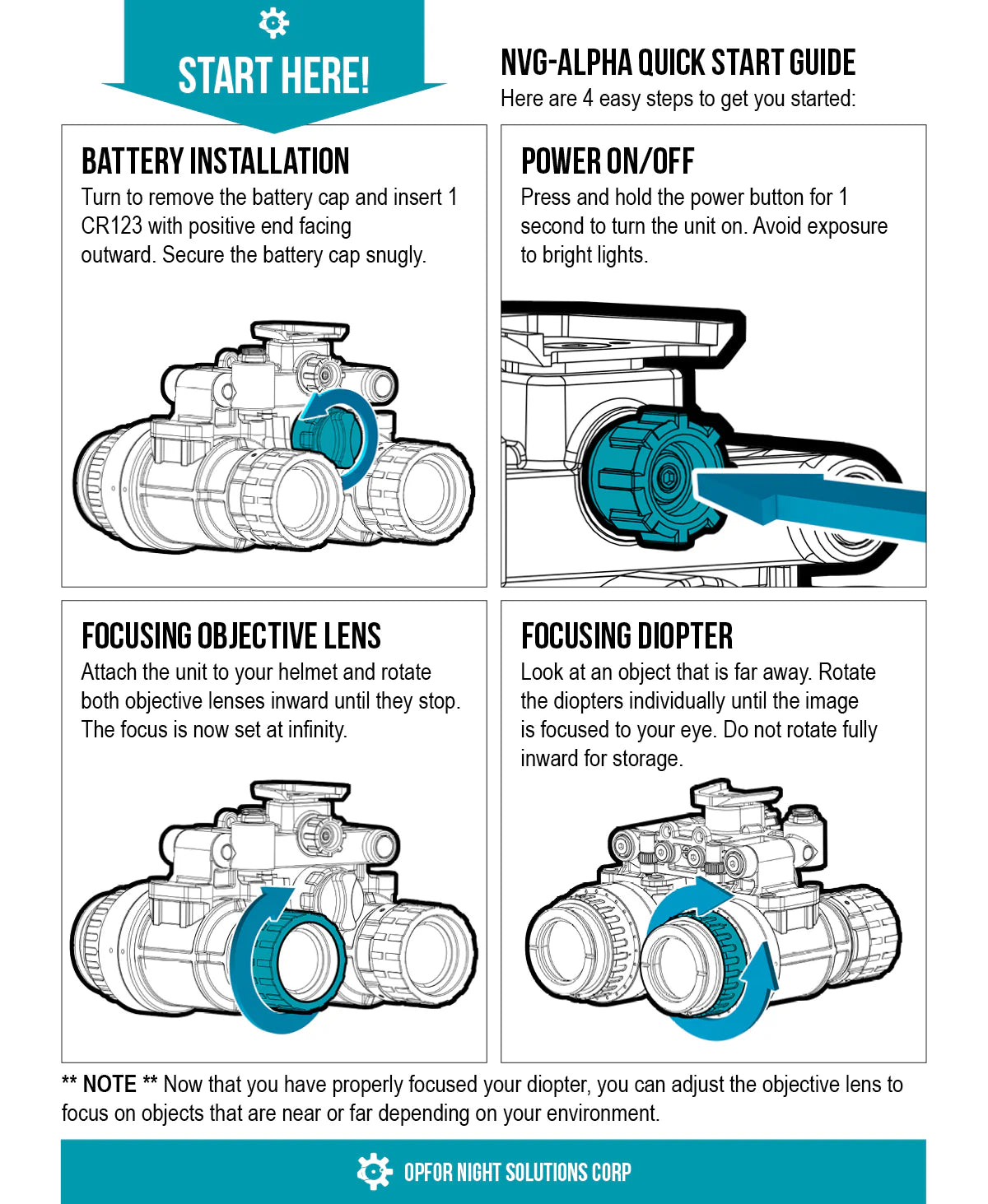

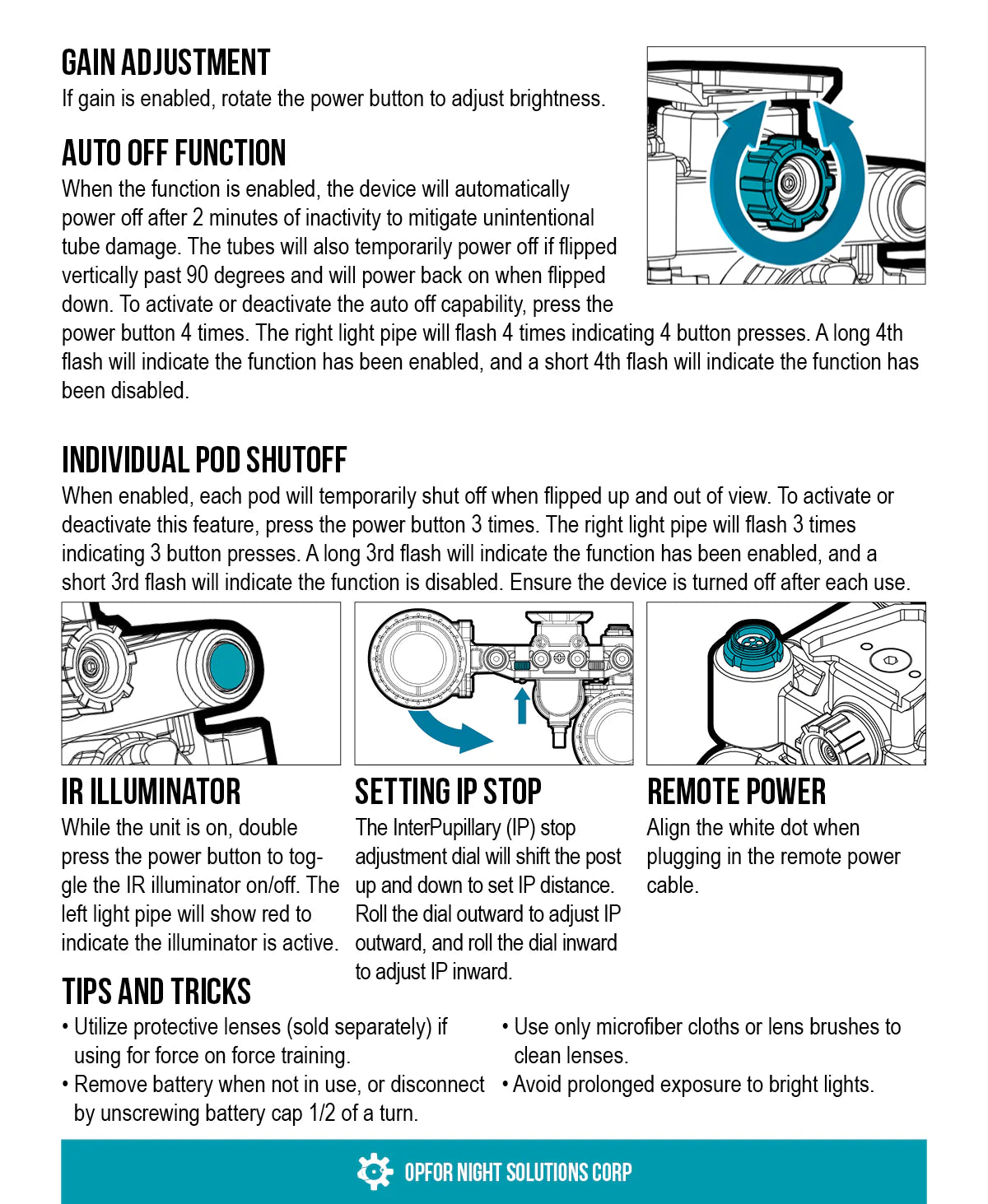

Controls & Operation
- All functions controlled via a single central rotating push button
- Manual gain knob allows precise brightness adjustments
- Power button requires 1-second hold to prevent accidental activation
- Dedicated sequences control IR illuminator, auto shutoffs, and factory reset
- Intuitive interpupillary adjustment system for tailored fit
Specifications
| Feature | Details |
|---|---|
| Construction | Polymer & Aluminum Hybrid |
| Power | Single CR123A (~20 hrs) or External Fischer Pack |
| Operating Voltage | 1.2–5V |
| Operating Temperature | -51°C to +49°C |
| IR Illuminator | Onboard |
| Manual Gain | EGAC Pigtail, 3-Plate MX10160, 4-Plate MX10160 compatibility |
| Weight | ~195g housing only / ~470g with RPO 3.0 lenses / ~560g with BrightPath MIL40 / ~595g with Noctis/Fujinon |
| Shock Resistance | MIL-STD-810G Transit Drop |
| Water Resistance | IP68, 2 meters for 1 hour |
Lens Options
- US Milspec – Noctis/Fujinon: Excellent balance of resolution, light transmission, and flare suppression with low edge distortion
- RPO 3.0 Milspec+: Lightest weight assembly with low-profile diopter, outstanding clarity, excellent flare suppression, and top center resolution
Lens selection directly impacts image quality—premium US Milspec lenses are recommended for optimal performance.
Tubes Available
- NNVT: Affordable, balanced clarity and reliability for general use and training
- ELBIT: High resolution and brightness for professional use in demanding conditions
- L3: Gold standard for unmatched clarity and low-light performance; ideal for elite operators and critical missions
Applications
- Tactical operations
- Search & rescue missions
- Surveillance & reconnaissance
- Hunting & outdoor exploration
- Personal security
Custom Build Process
All NVG-ALPHA units are custom-assembled to your specifications. Please allow up to one week for assembly, calibration, and testing prior to shipment (excluding DECO processing times). Every unit is collimated, nitrogen-purged, and shipped with infinity focus and diopters properly set.
Why Choose the NVG-ALPHA?
- Lightweight yet durable hybrid polymer/aluminum construction
- Advanced auto shutoff functions for tube protection
- Variable gain control with memory recall
- Custom-built with premium US Milspec lens options
- Compatible with leading mounts and remote battery systems
Order Now
The NVG-ALPHA Night Vision Binocular is in stock. A customizable, professional-grade solution trusted for tactical operations, outdoor exploration, and mission-critical applications.
