Manticore R

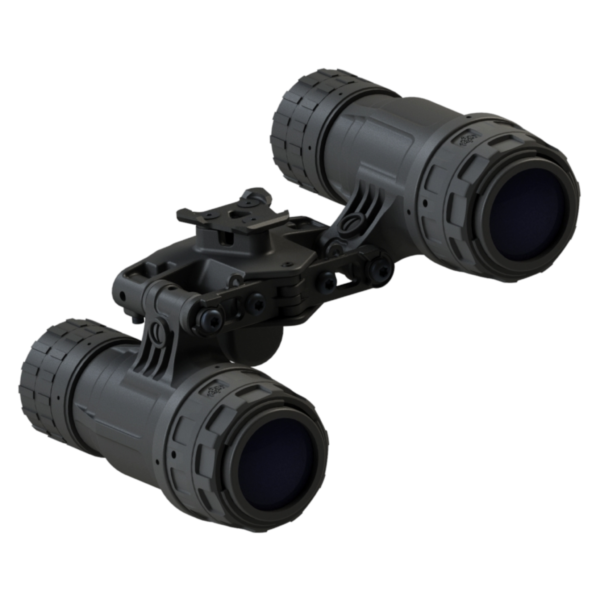

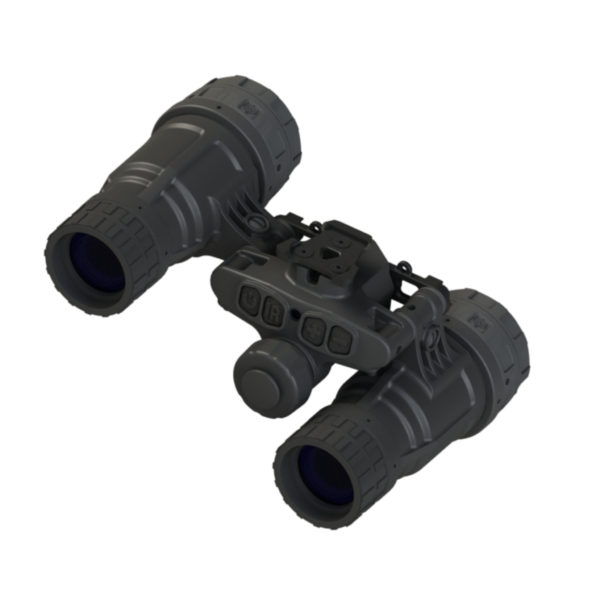

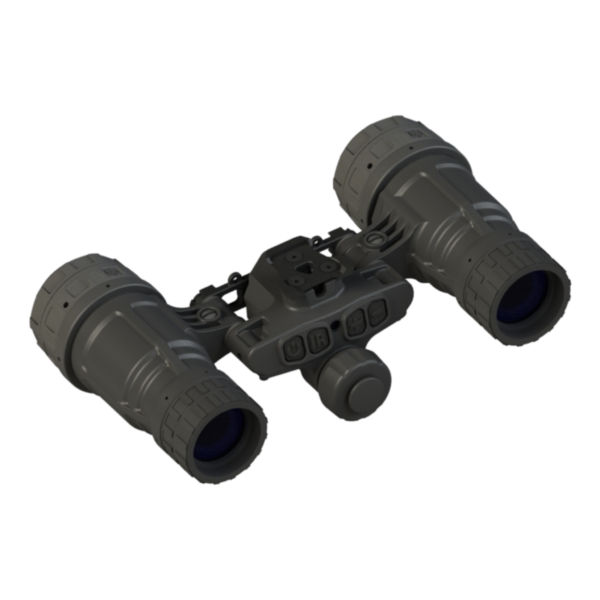

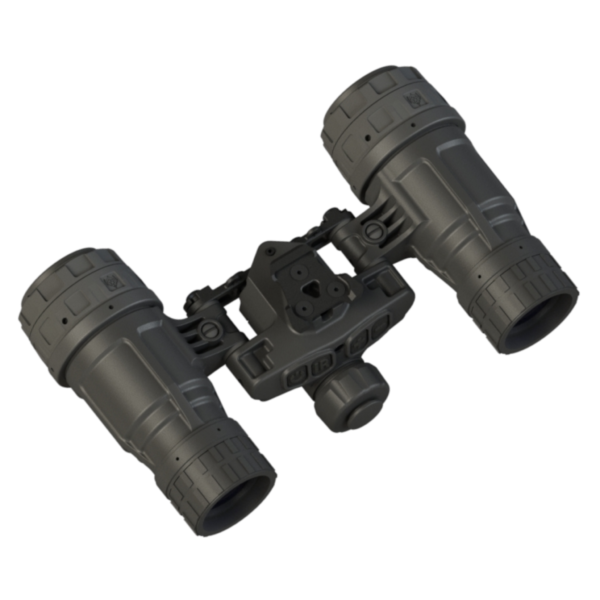

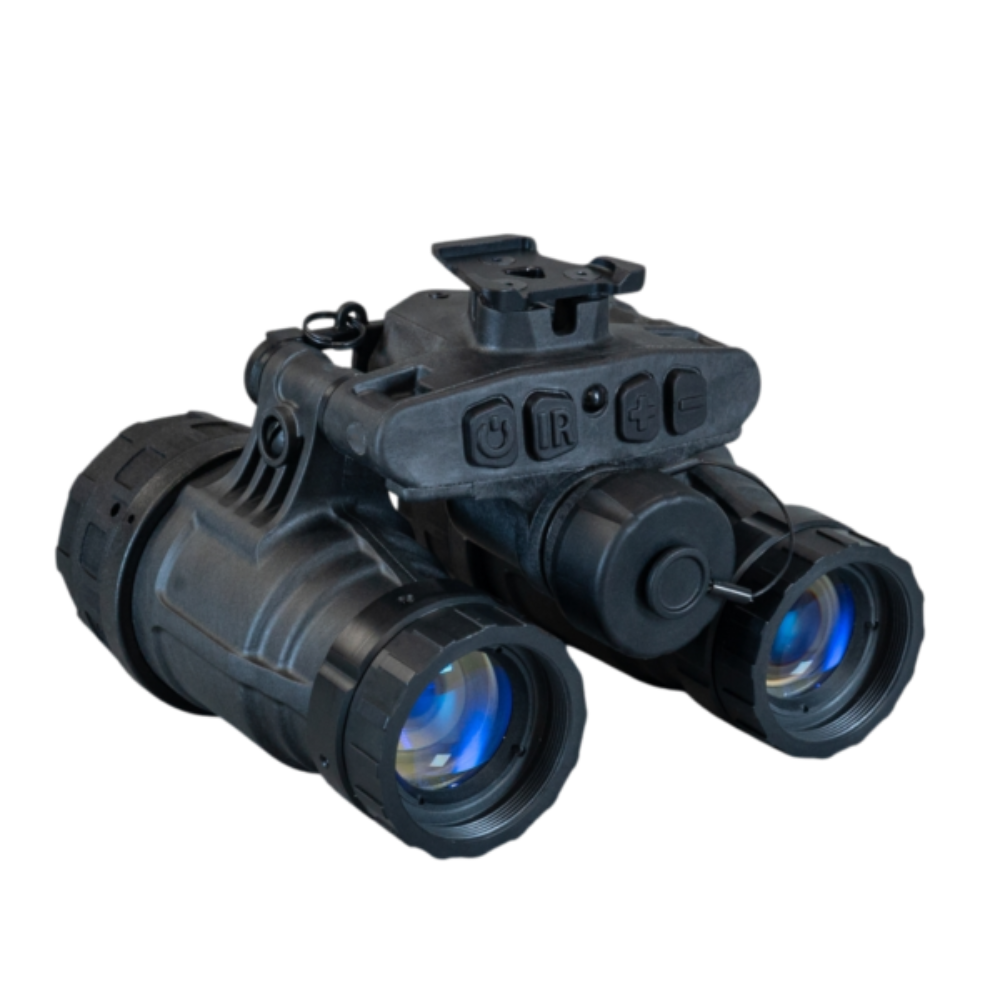

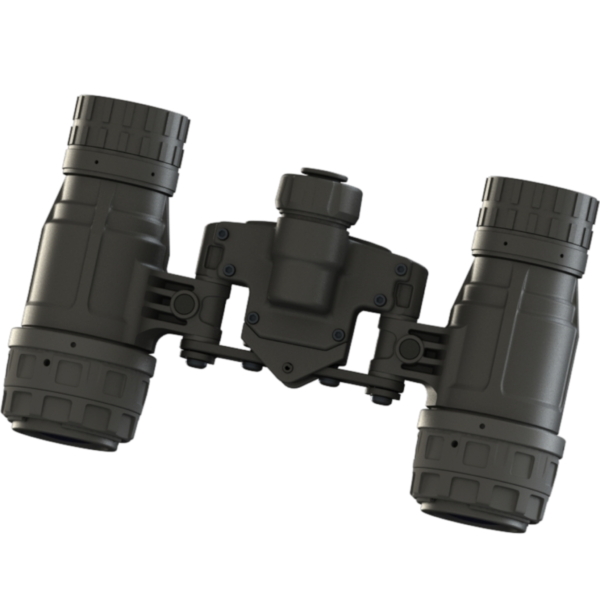

The Manticore-R from Nocturn Industries is a next-generation articulating binocular housing built from 7075-T6 aluminum and optimized for Gen 3 White Phosphor Night Vision. Lightweight, rugged, and feature-rich, the Manticore-R offers advanced digital controls, a durable construction, and full tactical adaptability for professionals who demand elite performance.

Built for Battle, Designed for Precision

Lightweight Strength: 561 g fully assembled with Mil-Spec PVS-14 optics
Articulating Design: Individual pod stow for helmet clearance and reduced neck strain
Power Management: Individual pod auto-OFF preserves battery life
Vehicle & Thermal Integration: Low-profile stow design ideal for confined spaces or pairing with thermal optics

Key Features

Digital Onboard Controls: Power, manual gain, and IR illuminator
Dual Indicators: IR ON indicator and low-battery alert in field of view
Tool-less IPD Adjustment: Quick and intuitive interpupillary tuning
User-Adjustable Pod Tension: Customize articulation feel and resistance
Built-in Dovetail Mount: Ready for helmet integration
Power: Single CR123A battery with ~25 hrs runtime
Environmental Protection: Dustproof, waterproof to 1.5 m, exceeds MIL-STD-810G and NATO 1.5 m drop-test standards
Finish: Mil-Standard Type III Class II anodize + H-series Cerakote
Warranty: Lifetime, no-questions-asked on housing

Tube Options Available

Tube Type	Description
L3Harris Filmless White Phosphor	Premium Gen 3 filmless white phosphor with excellent clarity
L3Harris SuperGain Filmless White Phosphor	Enhanced brightness and superior low-light performance
Elbit Gen 3 White Phosphor	Thin-filmed Gen 3 tubes offering high performance and reliability
NVT White Phosphor	Cost-effective Gen 2 option balancing performance and value

Tactical Versatility

Operate with one eye or both for maximum flexibility
Ideal for pairing with thermal optics or non-passive aiming systems
Helmet-friendly design eliminates need to stow goggles upright
Perfect for tactical operations, surveillance, vehicle use, and low-light navigation

Specifications

Feature	Details
Housing Material	7075-T6 Aluminum
Weight	561 g with PVS-14 optics
Power Source	1 × CR123A battery
Runtime	~25 hours
Environmental Protection	Dustproof, waterproof to 1.5 m, exceeds MIL-STD-810G & NATO 1.5 m drop test
Mounting	Integrated dovetail mount
Finish	Mil-Standard Type III Class II anodize + H-series Cerakote
Warranty	Lifetime (housing only)

Order Now

The Manticore-R is in stock in Black, FDE, and OD Green. Upgrade your setup with a rugged, feature-rich housing designed for elite field performance.
