Grave Shift Systems

BNVD-31

$5,999.00 USD

Sale Sold out

Image Intensifier NVT Gen 2+ Autogated White Phosphor Elbit Gen 3 White Phosphor 1700-2000 FOM ($2400.00) Elbit Gen 3 White Phosphor 2600+FOM ($3200.00) L3 Unfilmed Gen 3 White Phosphor (1700-2200 FOM) No Spots on spec sheets ($4200.00) L3 2376+FOM ($4800.00)

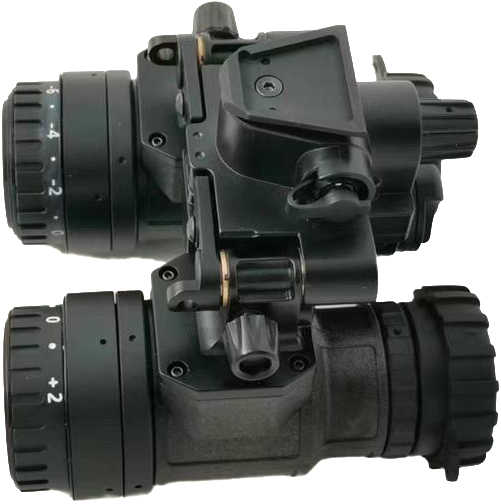

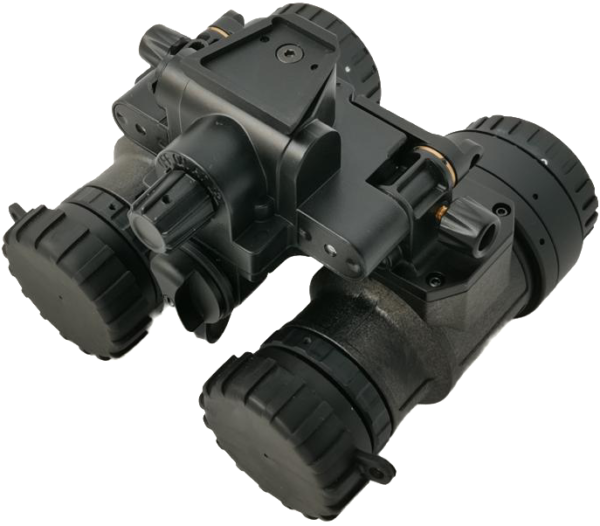

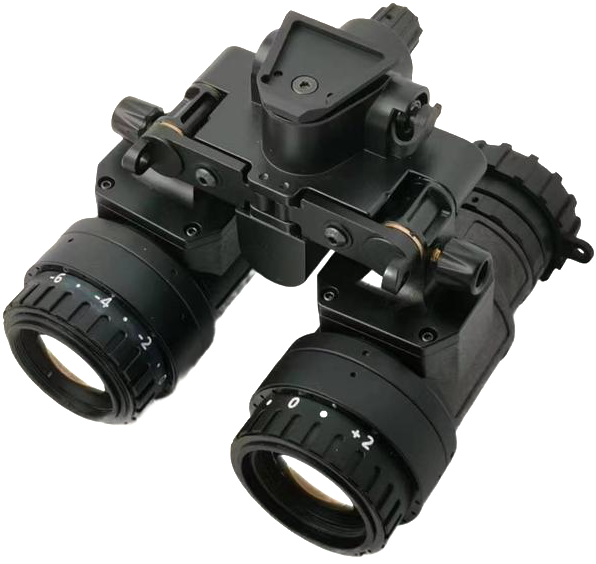

BNVD-31 Binocular Night Vision Device

IN STOCK

The BNVD-31 is a compact, lightweight dual-tube night vision goggle designed with direct input from U.S. operators. Known as one of the smallest and lightest dual-tube systems available, the BNVD-31 increases resolution, reduces head-borne weight, improves balance, and enhances overall situational awareness. The BNVD-31 is a versatile tool for both professional and enthusiast use.

Modular Pivoting Tube Design

Independent Pivoting Pods: Run in binocular or monocular configuration depending on mission needs
Auto Pod Shutoff: Automatic power cutoff when pods are rotated up or out
Monocular Use: Allows rapid transition between night vision and weapon-mounted optics
Low-Profile Stowage: Pods rotate flat against the helmet, reducing profile and protecting equipment

Key Features

IPD Stops: Adjustable interpupillary distance for tailored fit
PVS-14 Optics: Widely compatible and field-proven lens system
Flip-Up Shutoff: Auto-off feature when stowed
Built-in IR Illuminator: 850 nm, 20 mW for close-range illumination
Battery Compatibility: Runs on a single CR123 or external battery pack (included)
Complete System Weight: 19 oz

Specifications

Feature	Details
Image Intensifier	NNVT, Elbit, and L3 available
Magnification	1X
Type	Rotating binocular
Shutoff Function	Auto flip-up shutoff / auto pod shutoff
Battery Type	1 × CR123 lithium or included battery pack
Voltage Range	2.6 – 4.2V
Control Type	ON / IR / AUTO
FOV	40°
Power Consumption	<0.1W
Battery Capacity	800 – 3200 mAh
Runtime	40 – 100 hrs (dependent on battery source)
Parallelism of Axes	<0.1°
Optical Aperture	F1.18, 22.5 mm
Optical MTF	120 LP/mm
Optical Distortion	≤3%
Focus Range	0.25 m – ∞
Diopter Adjustment	0 (±5° optional)
IPD Range	50 – 80 mm
IR Illuminator	850 nm, 20 mW
Waterproof	IP65 (IP67 optional)
Weight	19 oz (complete system)

What’s Included

BNVD-31 Night Vision Goggle
Battery Pack
Mount
Deployment Pouch
Skull Crusher Head Mount
User Manual & Tools

Order Now

The BNVD-31 Binocular Night Vision Device is in stock. Lightweight, rugged, and mission-proven, it’s the ideal choice for operators and enthusiasts who need modular performance and reliability.

View full details
